交付人员二开
目录结构
├─.prettierrc
├─index.html
├─jsconfig.json
├─package.json # 配置项
├─README.md
├─vite.config.js
├─src
| ├─App.vue
| ├─main.js
| ├─views # 页面视图
| | ├─error
| | | ├─403.vue
| | | └404.vue
| | ├─demo
| | | └index.vue
| ├─utils
| ├─store
| ├─router # 路由
| | ├─index.js
| | ├─routerMap.js
| | ├─modules
| ├─const
| ├─config
| ├─components
| ├─assets
| ├─api
├─public
├─env
业务功能组件使用
详细说明如何在业务页面中使用框架提供的组件。
提供组件的使用示例和注意事项。
不需要二开
一般来说，标品交付且不需要二开的话，不需要引入对应业务功能包，此处用于描述如何业务功能npm包如何在路由中配置使用。
添加业务包 @imom-qms/processcontrol-checkrule，并以 check-rule为路由访问。
- 单组件业务功能npm包导入
// src/router/modules/checkRule/index.js
export default [
{
path: "/check-rule",
name: "checkRule",
component: () => import("@imom-qms/processcontrol-checkrule"),
meta: { title: "检验业务类型规则" }
}
];
- 多组件业务功能npm包导入
// src/router/modules/checkRule/index.js
export default [
{
path: "/check-rule",
name: "checkRuleIndex",
component: () => import("@imom-qms/processcontrol-checkrule").then(m => m.CheckRuleIndex),
meta: { title: "检验业务类型规则" }
},
{
path: "/check-rule-detail",
name: "checkRuleDetail",
component: () => import("@imom-qms/processcontrol-checkrule").then(m => m.CheckRuleDetail),
meta: { title: "检验业务类型规则-详情" }
},
];
需要二开
需要二开，需要根据业务需求进行修改。
- 添加业务包
@imom-qms/processcontrol-checkrule到vue文件中。
- 单组件业务功能npm包导入
<!-- src/views/customCheckRule/index.vue -->
<template>
<div class="custom-check-rule">
<CheckRuleIndex ref="checkRuleIndexRef" />
<!-- ...插槽使用 -->
</CheckRuleIndex>
</div>
</template>
<script setup>
import { ref } from "vue";
import CheckRuleIndex from "@imom-qms/processcontrol-checkrule";
const checkRuleIndexRef = ref(null);
// ...二次开发逻辑
</script>
- 多组件业务功能npm包导入
<!-- src/views/customCheckRule/index.vue -->
<template>
<div class="custom-check-rule">
<CheckRuleIndex ref="checkRuleIndexRef" />
<!-- ...插槽使用 -->
</CheckRuleIndex>
</div>
</template>
<script setup>
import { ref } from "vue";
import { CheckRuleIndex } from "@imom-qms/processcontrol-checkrule";
const checkRuleIndexRef = ref(null);
// ...二次开发逻辑
</script>
- 添加二开后的vue文件到路由中。
// src/router/modules/checkRule/index.js
export default [
{
path: "/check-rule",
name: "checkRule",
component: () => import("@/views/customCheckRule/index.vue"), // 修改为自定义的vue文件
meta: { title: "检验业务类型规则" }
}
];
效果展示
需要将新的二开工程，
自定义扩展
介绍如何基于框架进行自定义组件的开发。
说明如何扩展框架的功能以满足特定业务需求。
1. 查询表单二开（删除、添加、替换）

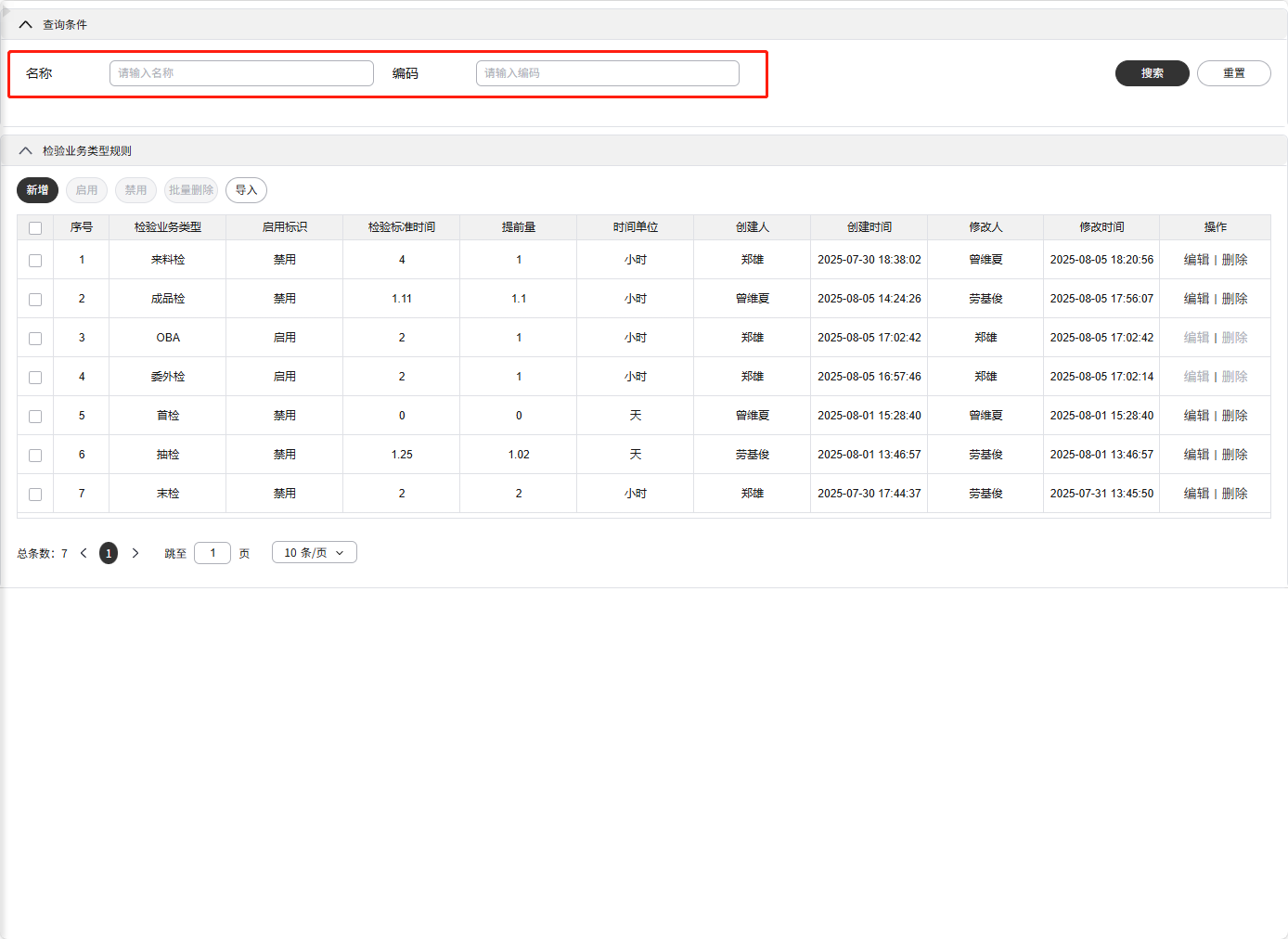

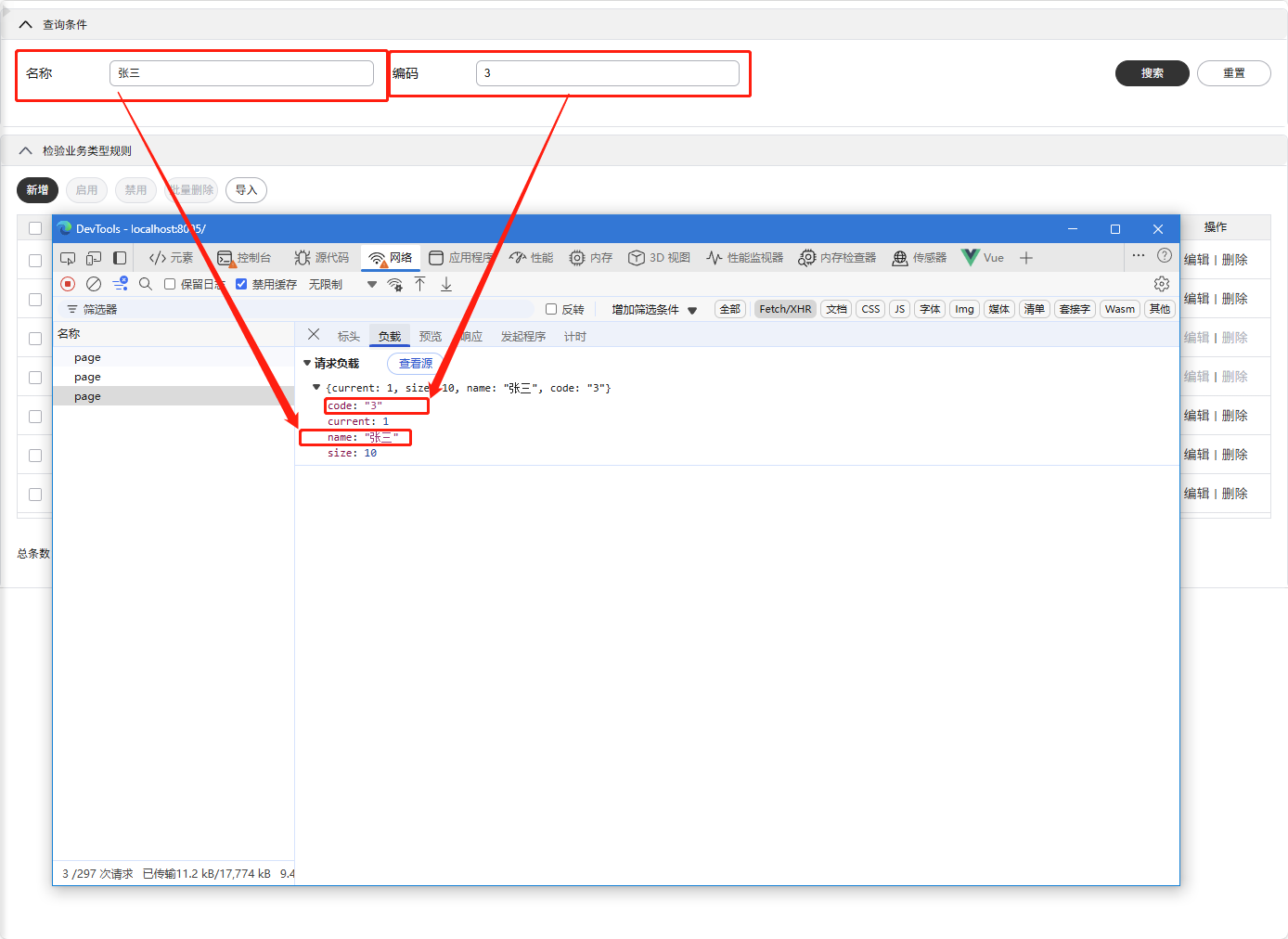

- 替换整个查询表单
<template>
<div class="custom-checkrule">
<CheckRule ref="checkRuleRef">
<template #searchForm>
<SieSearchForm v-bind="pageConfig.searchForm" @search="handleSearch"></SieSearchForm>
</template>
</CheckRule>
</div>
</template>
<script setup>
import { ref } from "vue";
import CheckRule from "@imom-qms/processcontrol-checkrule";
defineOptions({ name: "CustomCheckrule" });
const pageConfig = {
searchForm: {
formItemList: [
{ label: "名称", prop: "name" },
{ label: "编码", prop: "code" }
]
}
};
const checkRuleRef = ref(null);
const handleSearch = (params) => {
checkRuleRef.value.$methods.searchForm.handleSearch(params);
};
</script>

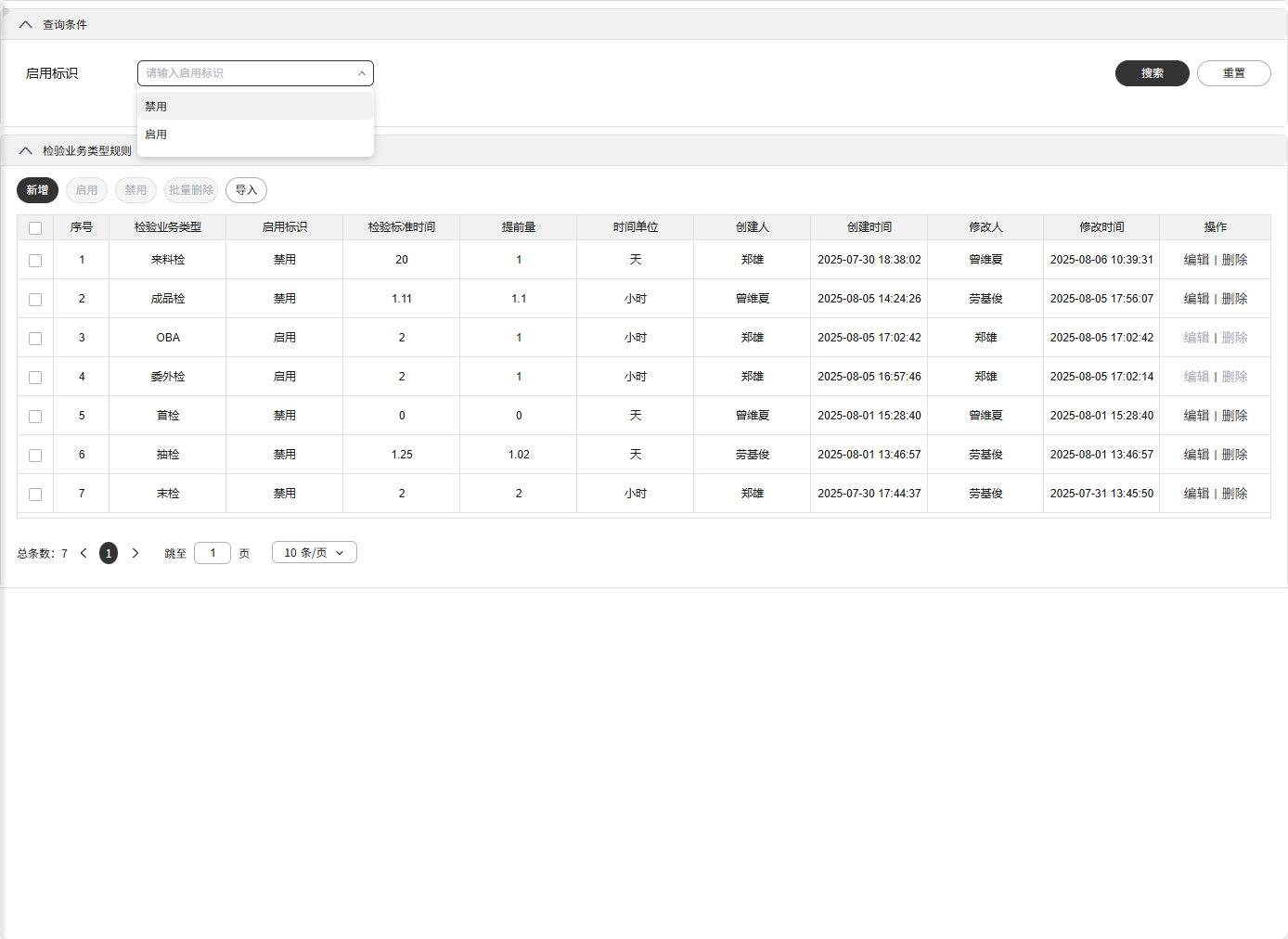

- 删除表单项
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { setFormItemListOp } from "@imom/vue-2nd-kit";
defineOptions({ name: "CustomCheckrule" });
const checkRuleOpts = {
customSetup({ state, config }) {
config.searchForm.formItemList = setFormItemListOp.delete(config.searchForm.formItemList, [
"inspectionBusinessType"
]);
return { state, config };
}
};
</script>

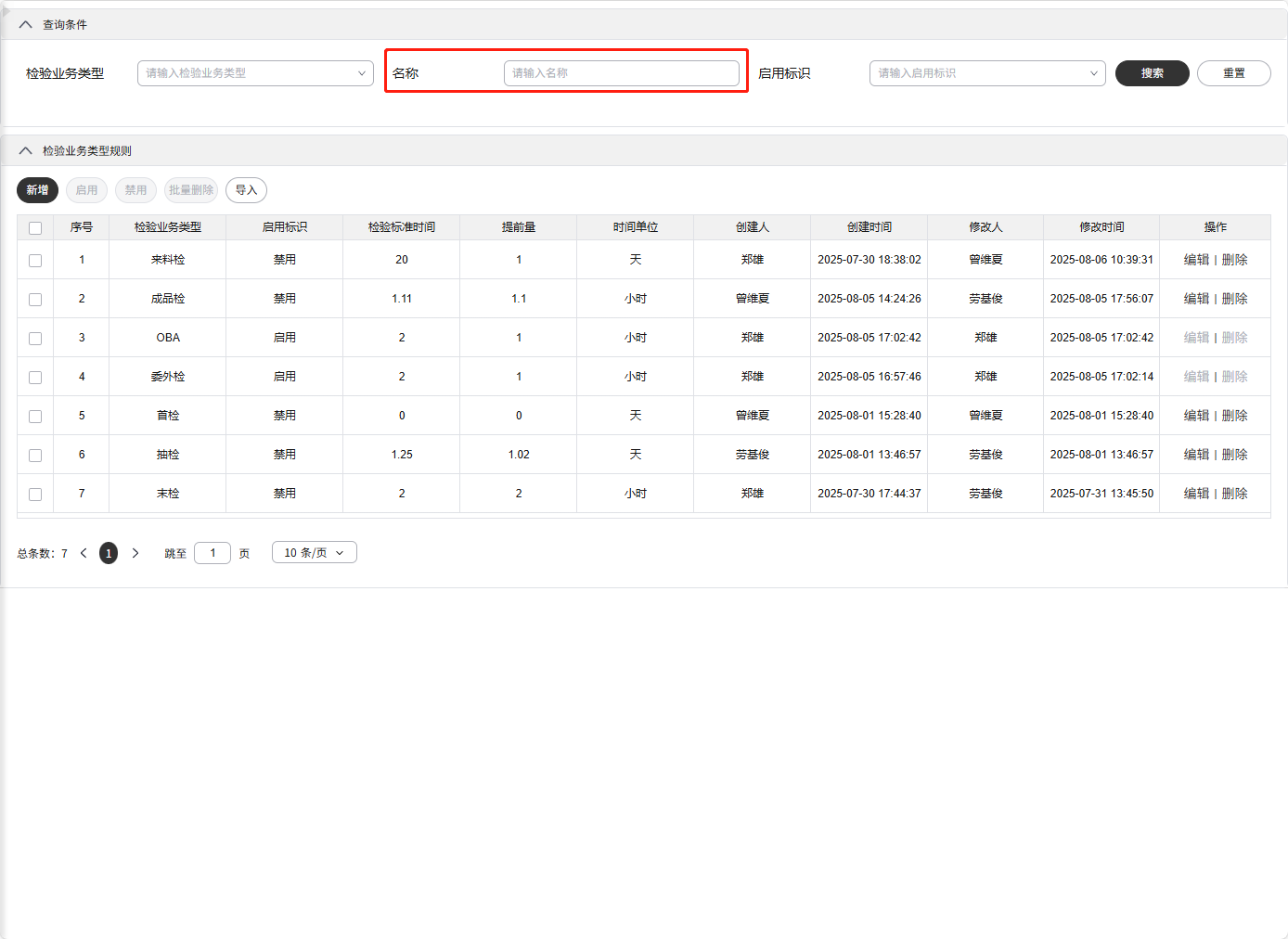

- 添加表单项
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { setFormItemListOp } from "@imom/vue-2nd-kit";
defineOptions({ name: "CustomCheckrule" });
const checkRuleOpts = {
customSetup({ state, config }) {
config.searchForm.formItemList = setFormItemListOp.insert(
config.searchForm.formItemList,
[{ label: "名称", prop: "name" }],
1
);
return { state, config };
}
};
</script>

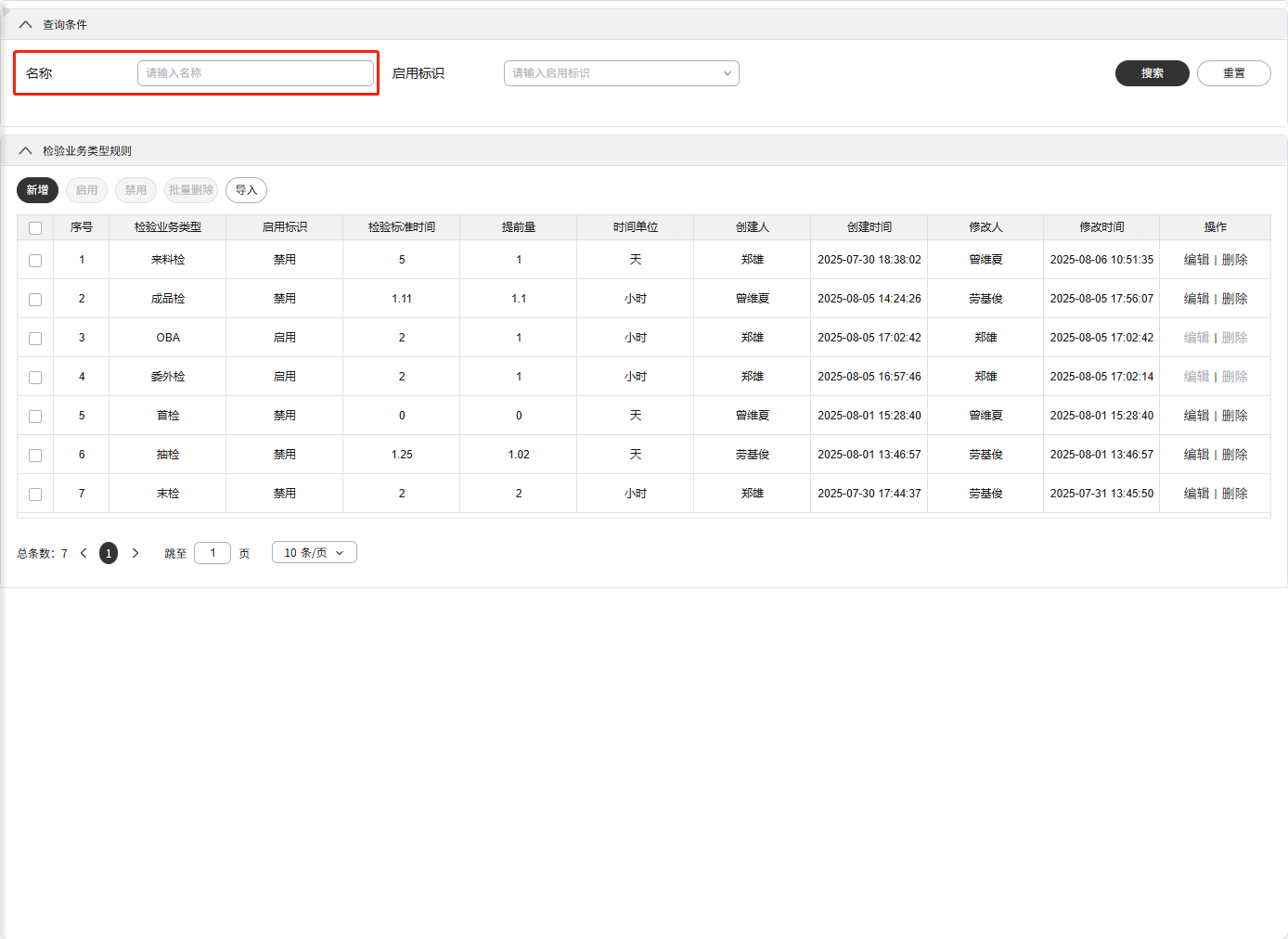

- 替换表单项
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { setFormItemListOp } from "@imom/vue-2nd-kit";
defineOptions({ name: "CustomCheckrule" });
const checkRuleOpts = {
customSetup({ state, config }) {
config.searchForm.formItemList = setFormItemListOp.replace(config.searchForm.formItemList, {
inspectionBusinessType: { label: "名称", prop: "name" }
});
return { state, config };
}
};
</script>

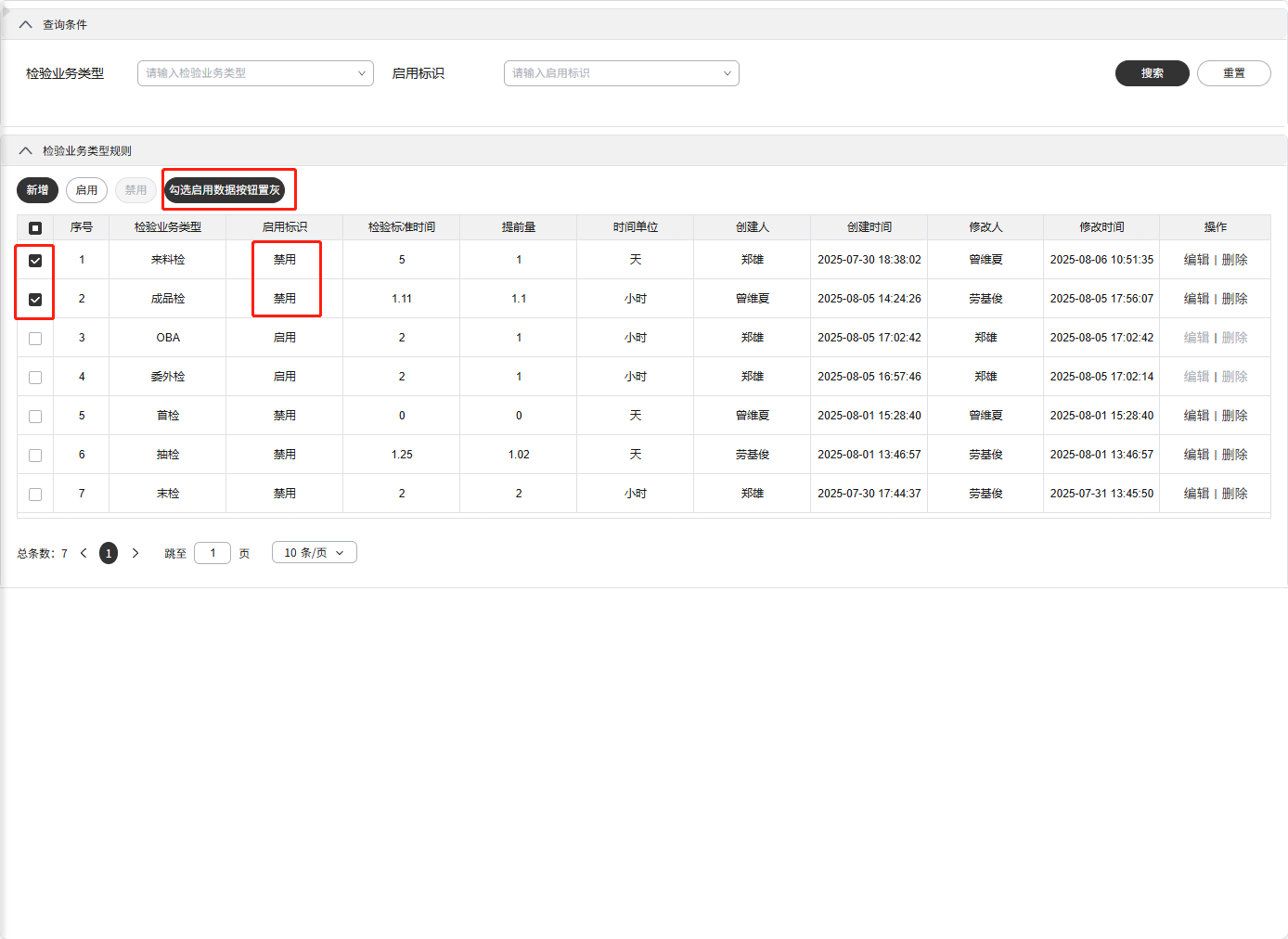

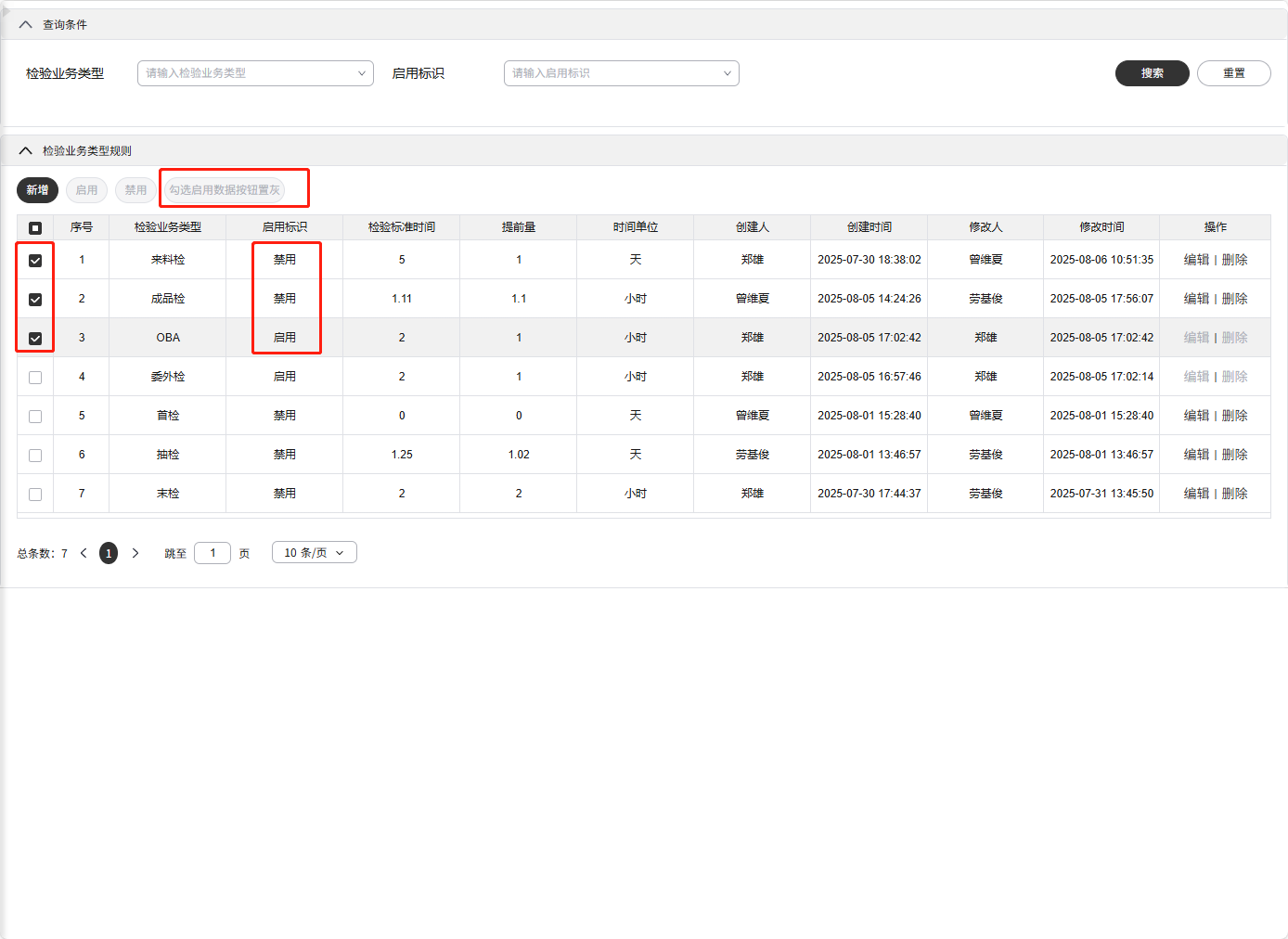

2. 按钮组二开
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { setButtonListOp } from "@imom/vue-2nd-kit";
defineOptions({ name: "CustomCheckrule" });
const checkRuleOpts = {
setButtonGroupAttrs({ state, config }) {
let customButtonList = setButtonListOp.delete(config.buttonList, ["deleteBatch", "import"]); // 删除按钮
customButtonList = setButtonListOp.insert(customButtonList, [
{
text: "勾选启用数据按钮置灰",
key: "grey",
disabled: state.selectedData.some((item) => item.enabledStatus === "1")
}
]); // 插入按钮
config.buttonList = customButtonList;
return config;
}
};
</script>

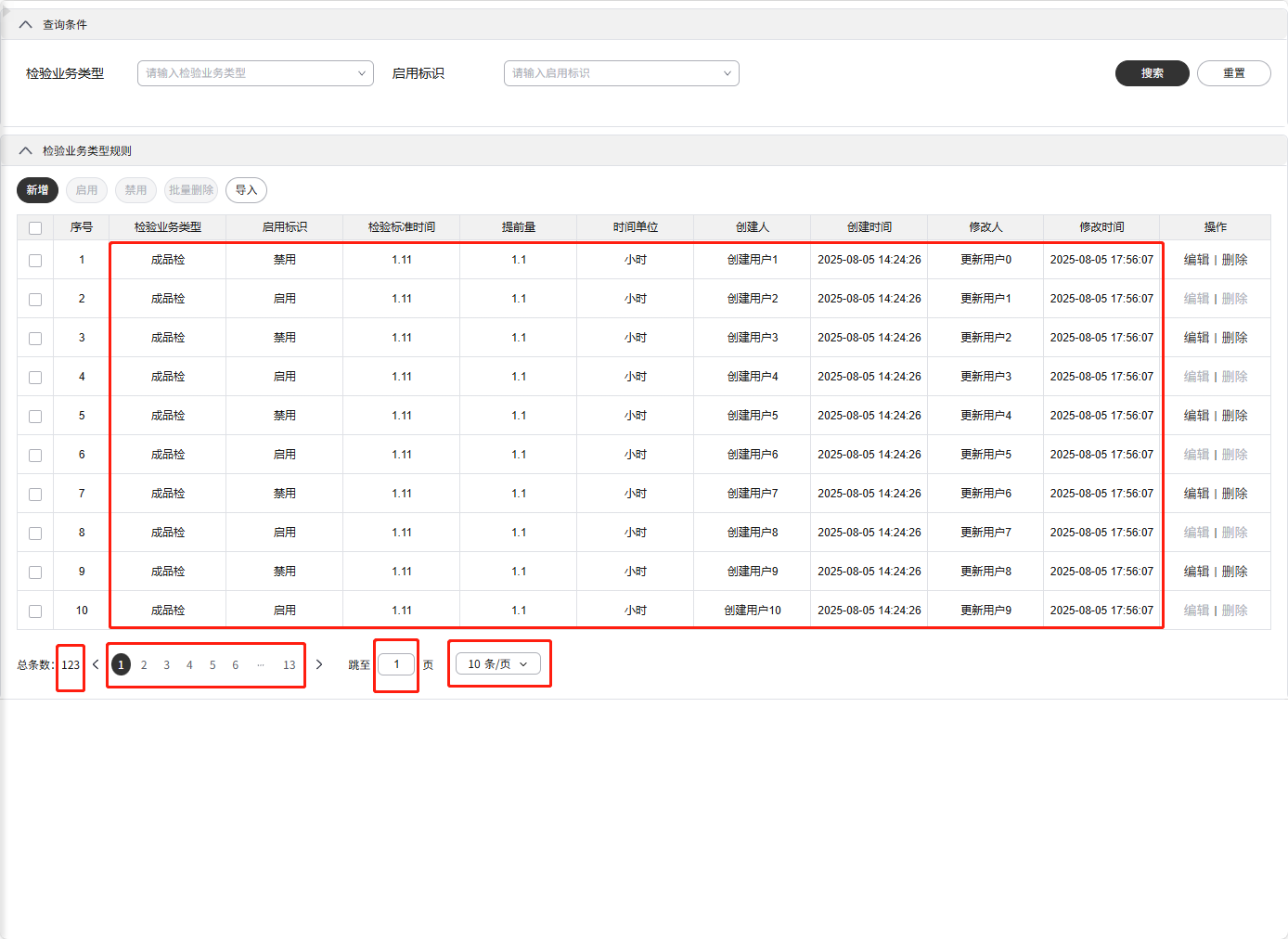

3. 修改（表格）查询接口
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
defineOptions({ name: "CustomCheckrule" });
const api = {
// mock的page接口
async page(_params) {
return {
code: 0,
data: {
total: 123,
current: 1,
size: 10,
pages: 13,
records: Array.from({ length: 10 }, (_, index) => ({
createUser: `${index}`,
updateUser: `666243387392069`,
createDate: `2025-08-05T06:24:26Z`,
updateDate: `2025-08-05T09:56:07Z`,
extAttrs: null,
warningMethod: null,
warningObject: null,
inspectionBusinessType: `FQC`,
inspectionStandardTime: 1.11,
unit: `HOUR`,
isWarning: `1`,
enabledStatus: `${index % 2}`,
delFlag: null,
warningThreshold: 1.1,
id: `${index + 1000}`,
updateUserName: `更新用户${index}`,
createUserName: `创建用户${index + 1}`
}))
},
msg: ""
};
}
};
const checkRuleOpts = {
customApi(type) {
let custApi;
switch (type) {
case "page":
case "table.page":
custApi = api.page;
break;
default:
break;
}
return custApi;
}
};
</script>

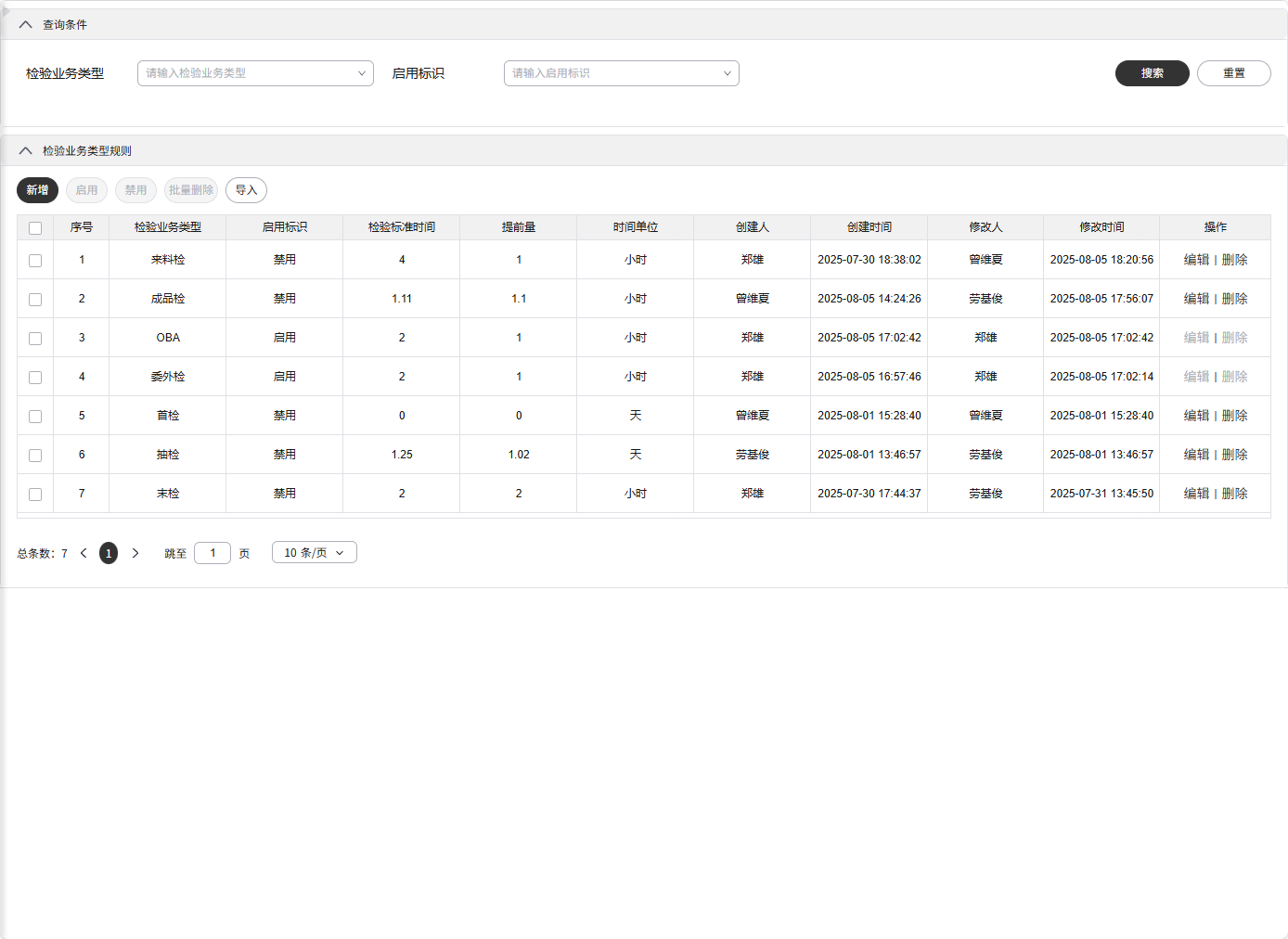

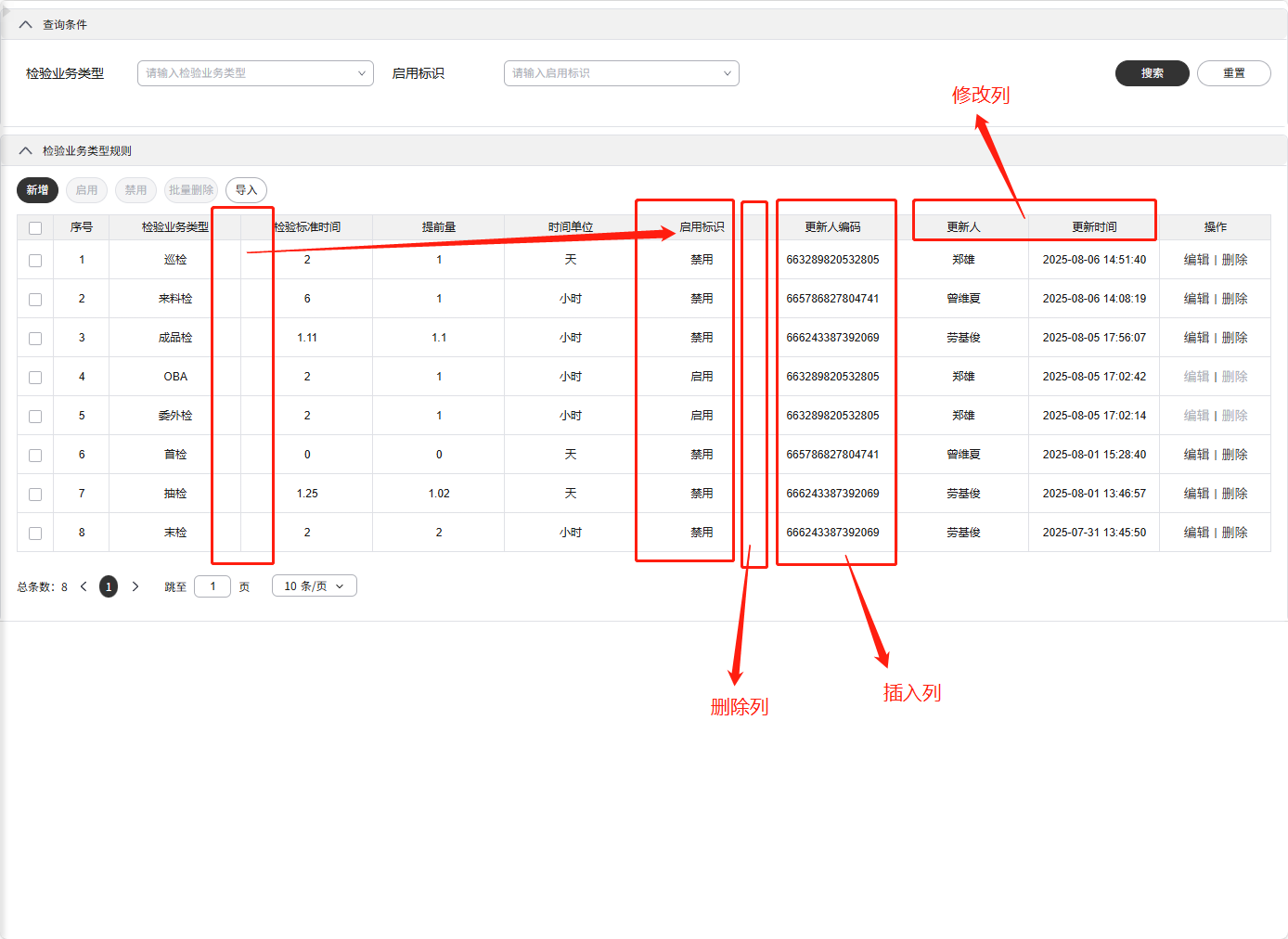

4. 表格列二开
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { setColumnConfigOp } from "@imom/vue-2nd-kit";
defineOptions({ name: "CustomCheckrule" });
const checkRuleOpts = {
customSetup({ state, config }) {
console.log("config.table.columnConfig :>> ", config.table.columnConfig);
let columnConfig = config.table.columnConfig;
// 删除列：创建人、创建时间
columnConfig = setColumnConfigOp.delete(columnConfig, ["createUserName", "createDate"]);
// 修改列：修改人、修改时间
columnConfig = setColumnConfigOp.update(columnConfig, [
{ field: "updateUserName", title: "更新人" },
{ field: "updateDate", title: "更新时间" }
]);
// 插入列：updateUser
columnConfig = setColumnConfigOp.insert(
columnConfig,
[
{
title: "更新人编码",
field: "updateUser"
}
],
6
);
// 将启用标识列移动到时间单位后
const enabledStatusColumn = columnConfig.find((column) => column.field === "enabledStatus");
columnConfig = setColumnConfigOp.delete(columnConfig, ["enabledStatus"]);
columnConfig = setColumnConfigOp.insert(columnConfig, [enabledStatusColumn], 5);
config.table.columnConfig = columnConfig;
return { state, config };
}
};
</script>

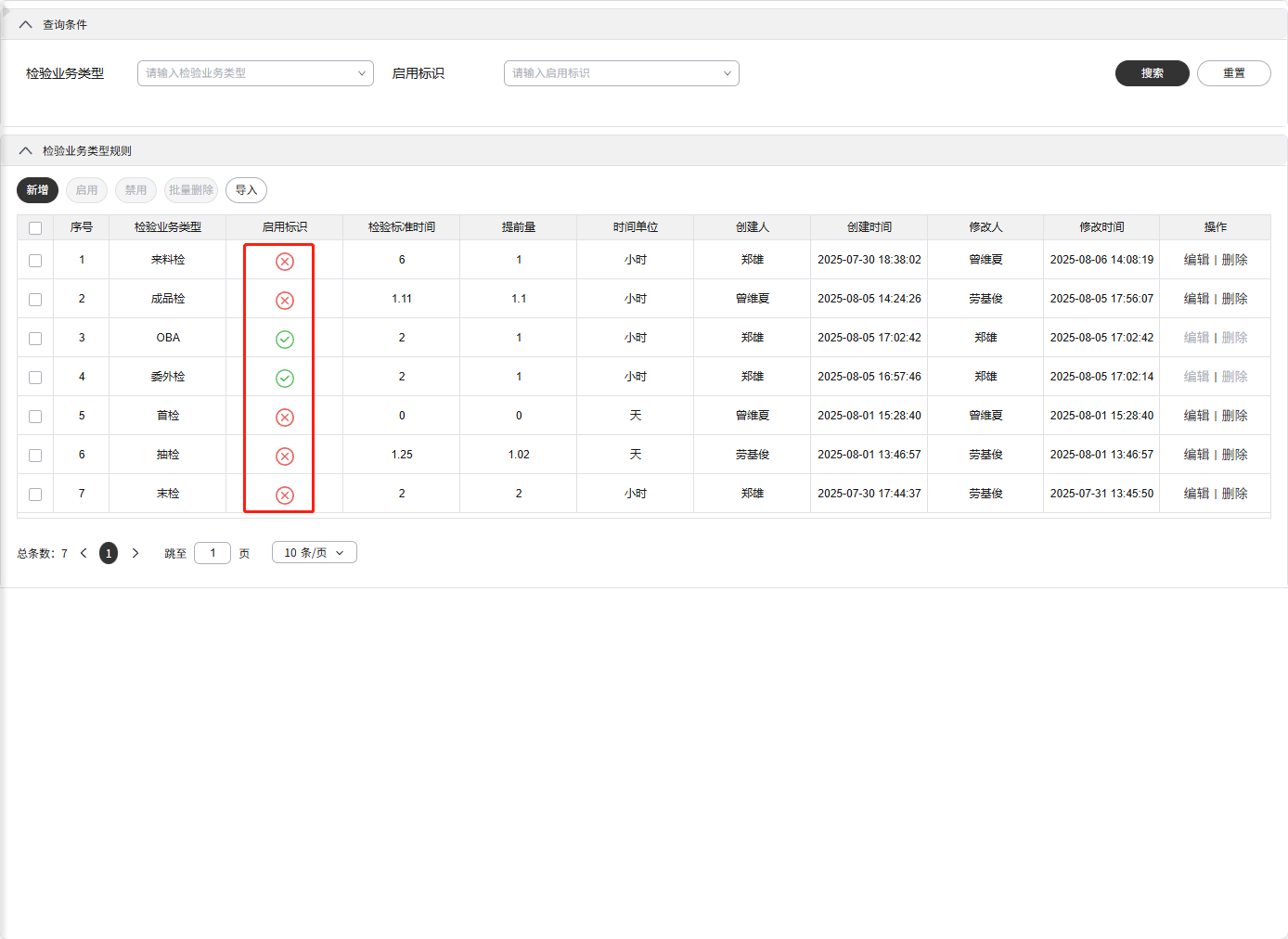

5. 表格列使用插槽
<template>
<div class="custom-checkrule">
<CheckRule>
<template #table_enabledStatus="s">
<div class="custom-enabledStatus">
<template v-if="s.cellValue === '1'">
<TinyIconSuccessful fill="#3fc05d"></TinyIconSuccessful>
</template>
<template v-else>
<TinyIconOperationfaildL fill="#f05d5d"></TinyIconOperationfaildL>
</template>
</div>
</template>
</CheckRule>
</div>
</template>
<script setup>
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { IconSuccessful, IconOperationfaildL } from "@opentiny/vue-icon";
defineOptions({ name: "CustomCheckrule" });
const TinyIconSuccessful = IconSuccessful();
const TinyIconOperationfaildL = IconOperationfaildL();
</script>
<style lang="less" scoped>
.custom-checkrule {
.custom-enabledStatus {
font-size: 20px;
}
}
</style>

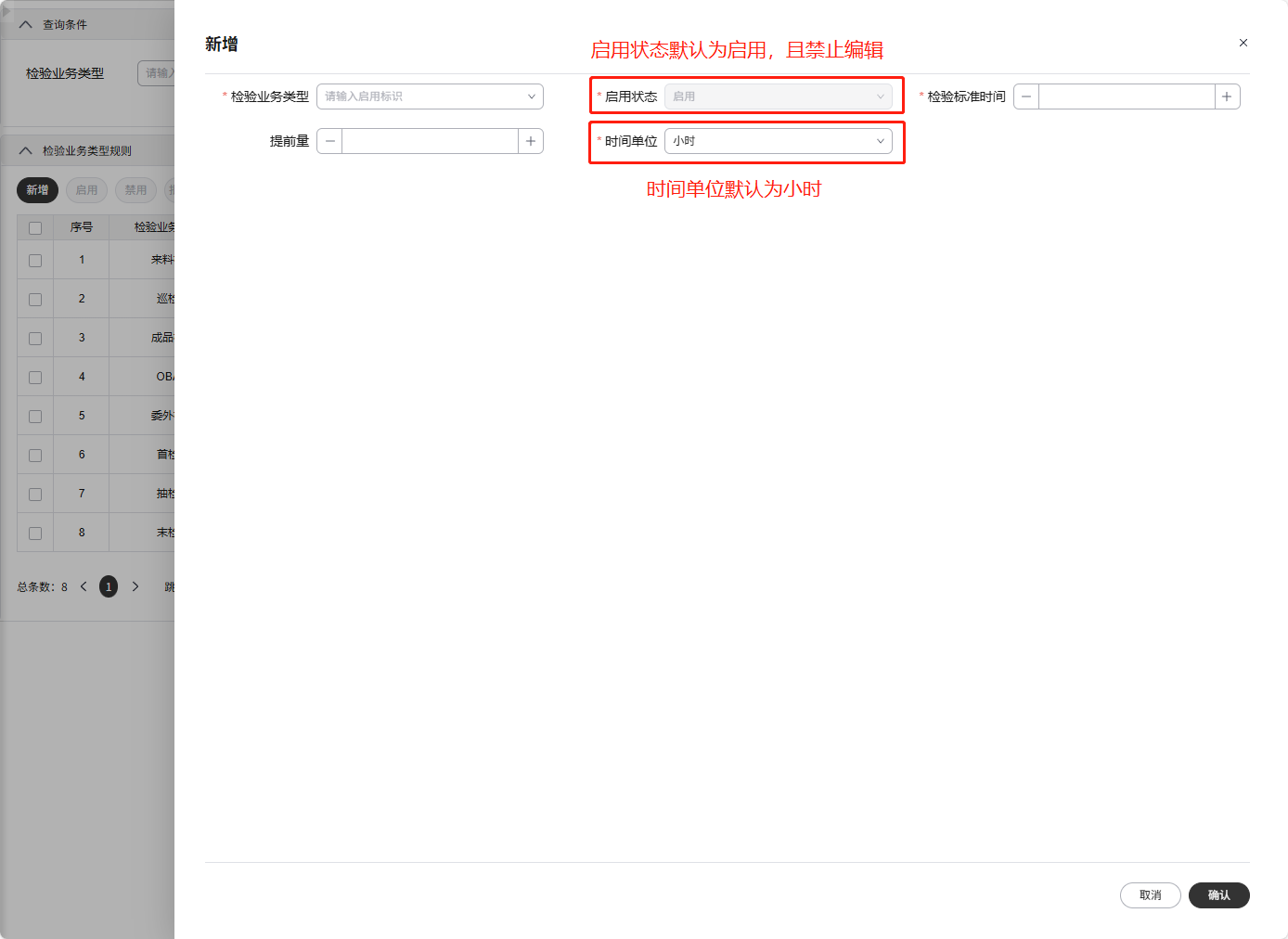

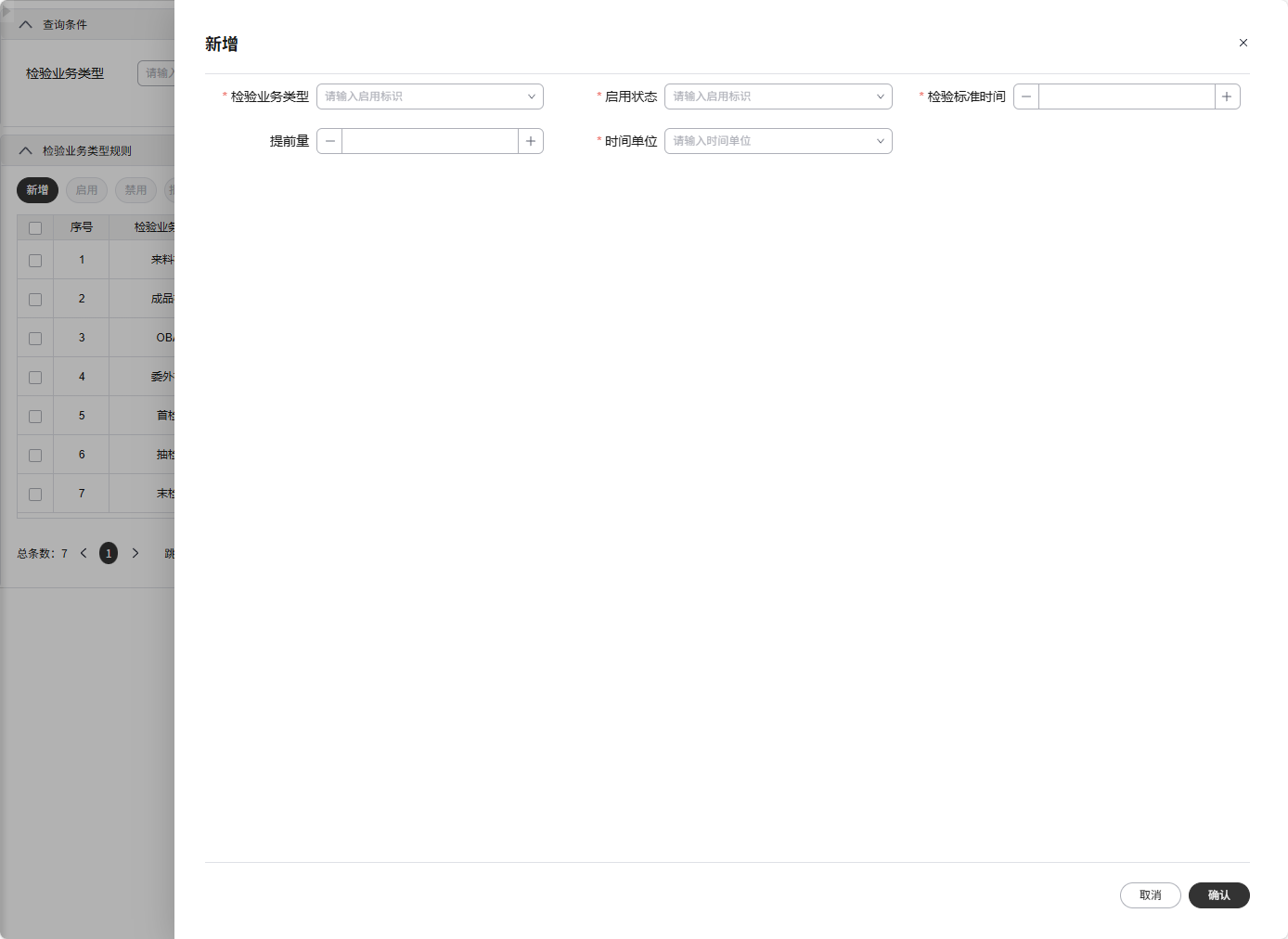

6. 表单项二开
<template>
<div class="custom-checkrule">
<CheckRule v-bind="checkRuleOpts"></CheckRule>
</div>
</template>
<script setup>
import { $notify } from "@dme/snack-ui";
import CheckRule from "@imom-qms/processcontrol-checkrule";
import { setFormItemListOp } from "@imom/vue-2nd-kit";
defineOptions({ name: "CustomCheckrule" });
const checkRuleOpts = {
customSetup({ state, config }) {
let formFormItemList = setFormItemListOp.update(config.form.formItemList, [
{
// 启用状态默认为启用，且禁止修改
prop: "enabledStatus",
defaultValue: "1",
attrs: { disabled: true }
},
{
// 时间单位默认值为小时
prop: "unit",
defaultValue: "HOUR"
}
]);
config.form.formItemList = formFormItemList;
return { state, config };
},
// 表单提交前钩子
beforeFormSubmit({ state, config }) {

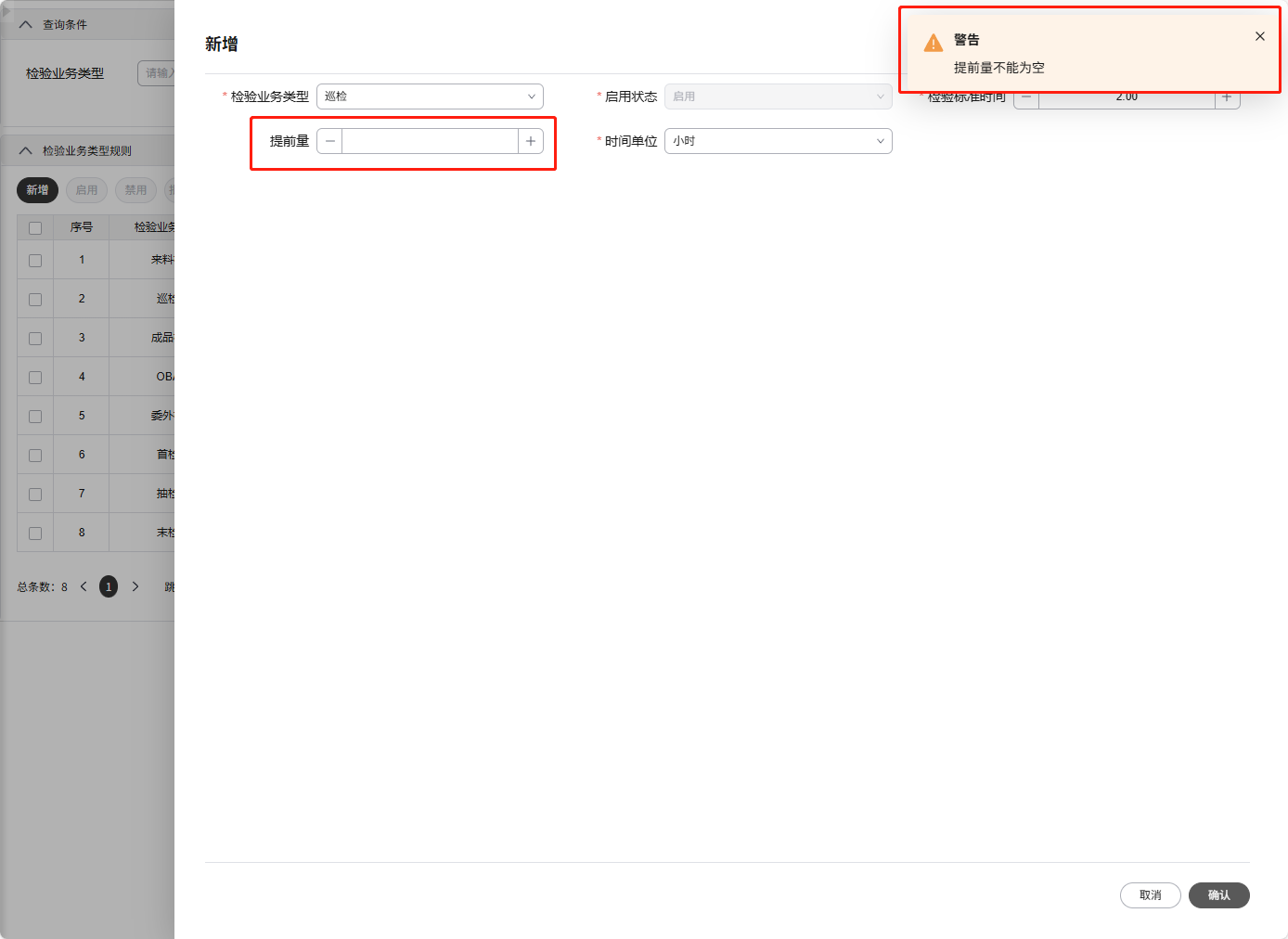

// 提前量为空时，做出提示，并阻止提交
if (!state.formData.warningThreshold) {
$notify.warning("提前量不能为空");
return false;
}

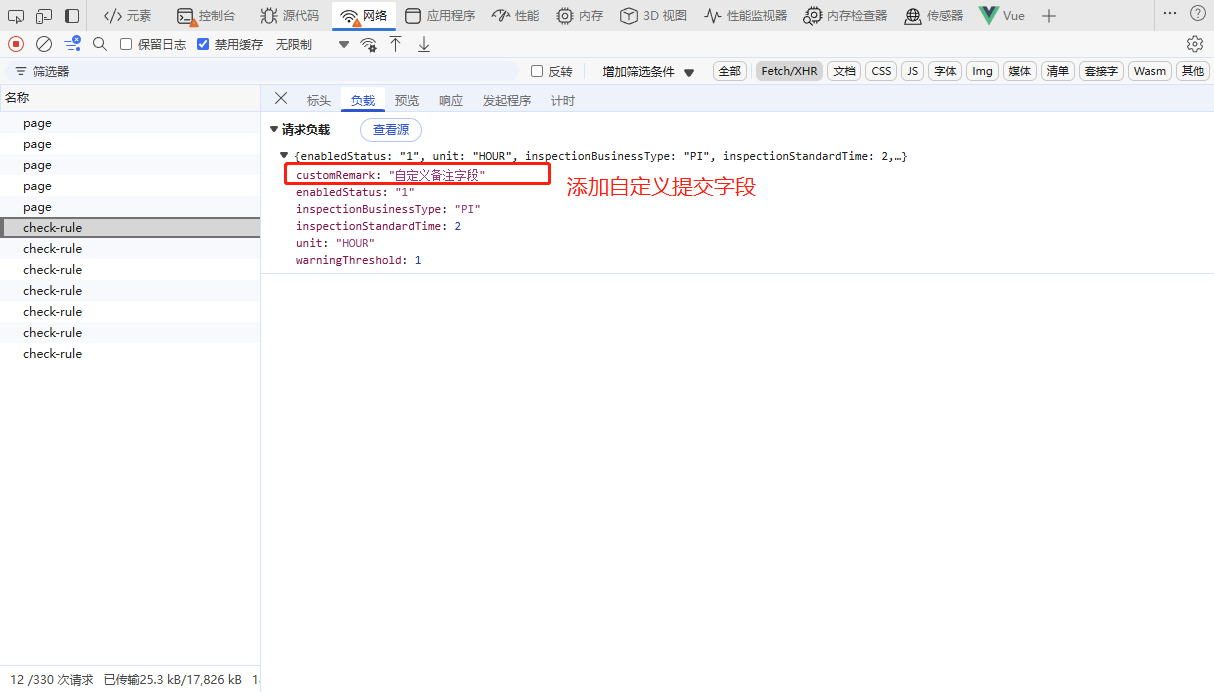

// 添加自定义提交表单字段
state.formData.customRemark = "自定义备注字段";
}
};
</script>
